Watson® WPS-CA botiriladigan seriyasi

Botiriladigan impuls klapani

Watson® botiriladigan impuls klapanlari bosim yo'qotilishini kamaytirish va qopli chang ushlagich filtr qoplariga to'g'ridan-to'g'ri kuchli tozalash impulsini yetkazib berish uchun havo kollektoriga o'rnatiladi. WPS-CA botiriladigan qatori CE, CCC, RoHS va IP65 himoyasiga ega DN25 dan DN115 gacha modellarni qamrab oladi.

Botiriladigan model qatorini ko'rish So'rov yuborish

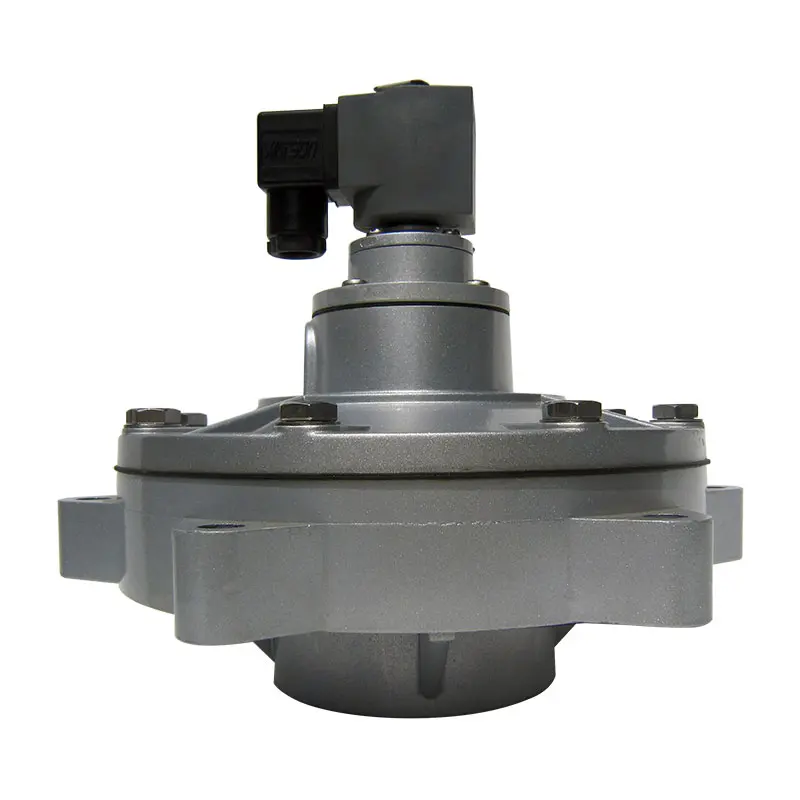

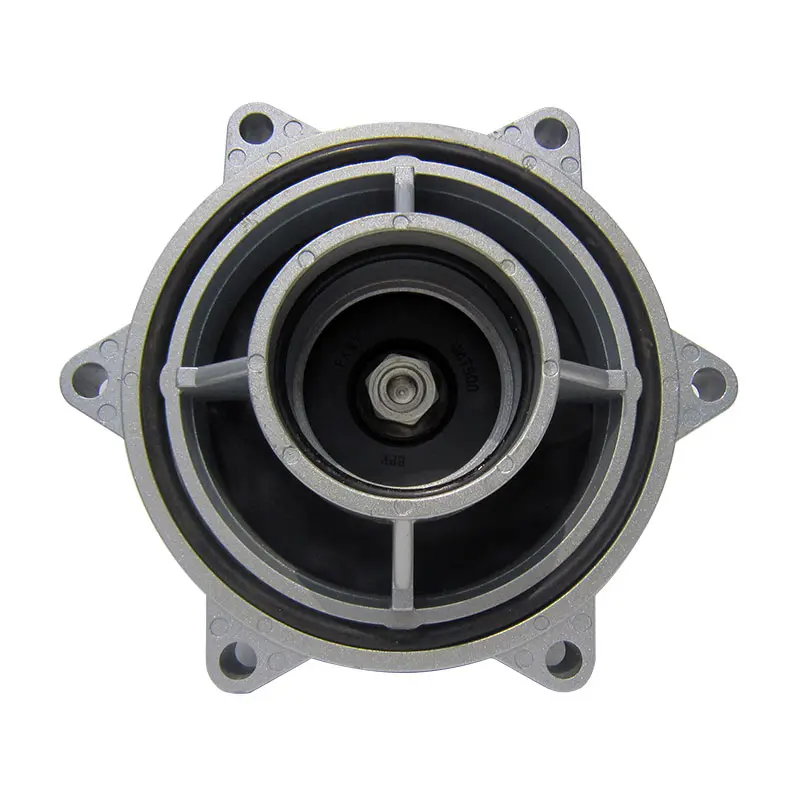

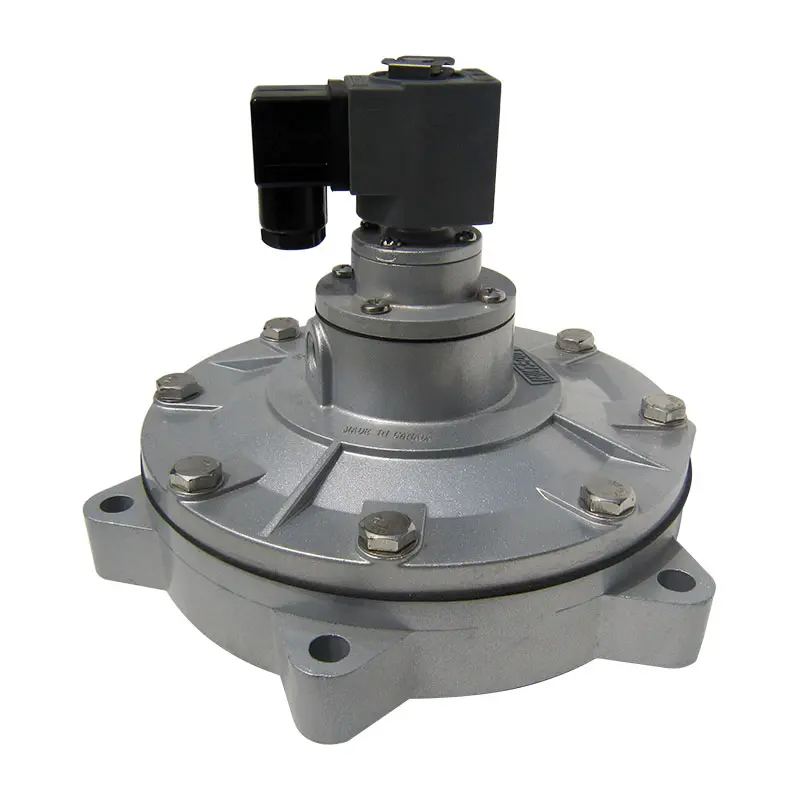

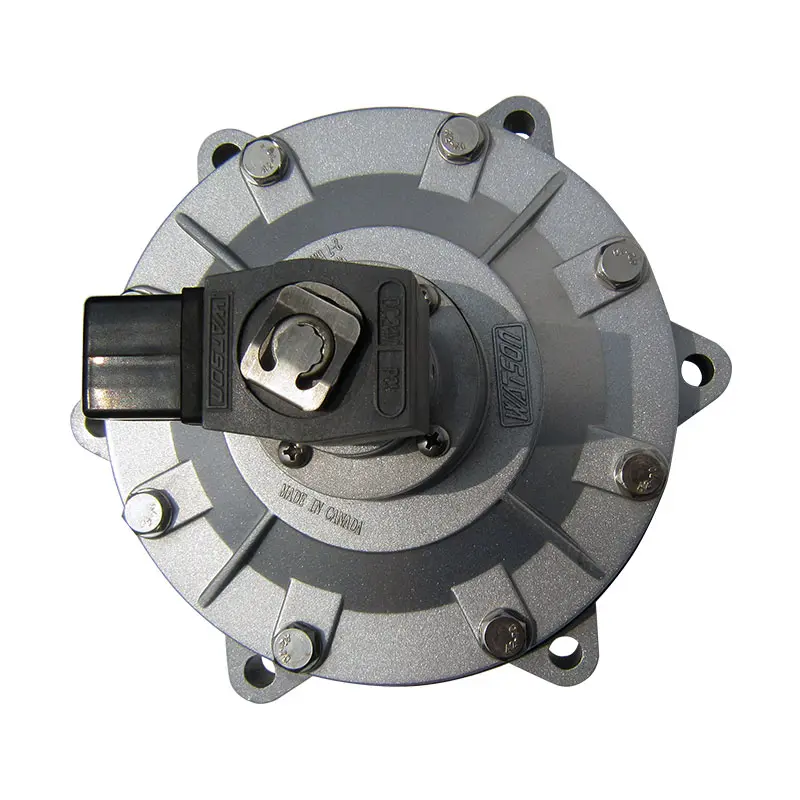

Watson® botiriladigan impuls klapani yetkazib beruvchisi

Universal ish xususiyatlari

WPS-CA turkumi bo'yicha ish sharoitlari.

Working Pressure0.2-0.6 MPa (2-6 bar)

MediumClean, dry compressed air

Working VoltageDC24V, AC220V/50Hz to AC240V/60Hz

Protection ClassIP65 waterproof and dustproof

EnvironmentTemperature −40°C to 120°C; humidity ≤ 85%

To'liq model turkumi

Watson® WPS-CA botiriladigan impuls klapani modellari.

Ish bosimi 0.2-0.6 MPa · toza, quruq siqilgan havo · DC24V yoki AC220V/50Hz-AC240V/60Hz · IP65 · CE / CCC / RoHS sertifikatlangan

Turi	Model raqami	O'lcham (dyuym)	DN o'lchami	Ex himoya darajasi
Botiriladigan	WPS-CA/EG25	1″	DN25	Bitta diafragma
Botiriladigan	WPS-CA/EG40	1½″	DN40	Bitta diafragma
Botiriladigan	WPS-CA/EP50	2″	DN50	Ikkita diafragma
Botiriladigan	WPS-CA/EP62	2½″	DN65	Ikkita diafragma
Botiriladigan	WPS-CA/EP76	3″	DN80	Ikkita diafragma
Botiriladigan	WPS-CA/EP102.B	3.5″	DN90	Ikkita diafragma
Botiriladigan	WPS-CA/EP102	4″	DN100	Ikkita diafragma
Botiriladigan	WPS-CA/EP115	4½″	DN115	Ikkita diafragma

Mahsulot standartlari

Watson® botiriladigan impuls klapanining afzalliklari.

SertifikatlarCE, CCC, RoHS

Himoya darajasi (IP)IP65

Cho'mdirilgan tuzilmaCho'mdirilgan tuzilma bosim pasayishini kamaytirish va impuls intensivligini oshirish uchun klapan korpusini havo kollektoriga joylashtiradi.

DiafragmaWatson® premium diafragmalar yuqori yuklamali sanoat qopli chang ushlagich tozalash tizimlarida uzoq xizmat muddatini ta'minlaydi.

Qo'llanilishiIshonchli Watson® botiriladigan impuls klapanlarini talab qiladigan texnik xizmat, almashtirish va yangilash loyihalari uchun mos keladi.

Sertifikatlar

Ushbu mahsulot turkumi mustaqil tashkilot tomonidan sertifikatlangan.

Barcha sertifikatlarni ko'rish →

Portlashdan himoya muvofiqlik sertifikati (NEPSI) — WPS-F seriyali portlashdan himoyalangan impuls klapanlari

🔍 Kattalashtirish uchun bosing

Mahsulot sertifikati

WPS-F series (WPS-F-CA/TG20–TG76, TD20–TD40, EG25–EG40, EP50–EP115, incl. -E/-F/-M variants)

Portlashdan himoya muvofiqlik sertifikati (NEPSI) — WPS-F seriyali portlashdan himoyalangan impuls klapanlari

Sertifikat raqami	GYB25.2393X
Bergan tashkilot	Shanghai Instrument & Automation System Inspection and Testing Institute Co., Ltd. (NEPSI — National Supervision and Inspection Center for Explosion Protection and Safety of Instrumentation)
Berilgan sana	2025-07-30
Amal qilish muddati	2030-07-29
Standartlar	GB/T 3836.1-2021, GB/T 3836.9-2021, Q/320500 HSXC 004-2022

Asl PDF hujjat kerakmi?

UL muvofiqlik sertifikati — Tan olingan komponent, elektr bilan boshqariladigan klapanlar uchun g'altak yig'ini

🔍 Kattalashtirish uchun bosing

Mahsulot sertifikati

WPS-TZ-XQ (suffix A, B, C, D or E)

UL muvofiqlik sertifikati — Tan olingan komponent, elektr bilan boshqariladigan klapanlar uchun g'altak yig'ini

Sertifikat raqami	20150423-MH49402 (Report Reference MH49402-20130423)
Bergan tashkilot	UL LLC
Berilgan sana	2015-04-23
Standartlar	UL 429, CAN/CSA C22.2 No. 139-10

Asl PDF hujjat kerakmi?

Texnik chizmalar

Ushbu mahsulot uchun o'rnatish o'lchamlari.

O'lchamlar so'rov bo'yicha taqdim etiladi

WPS-CA/EP102

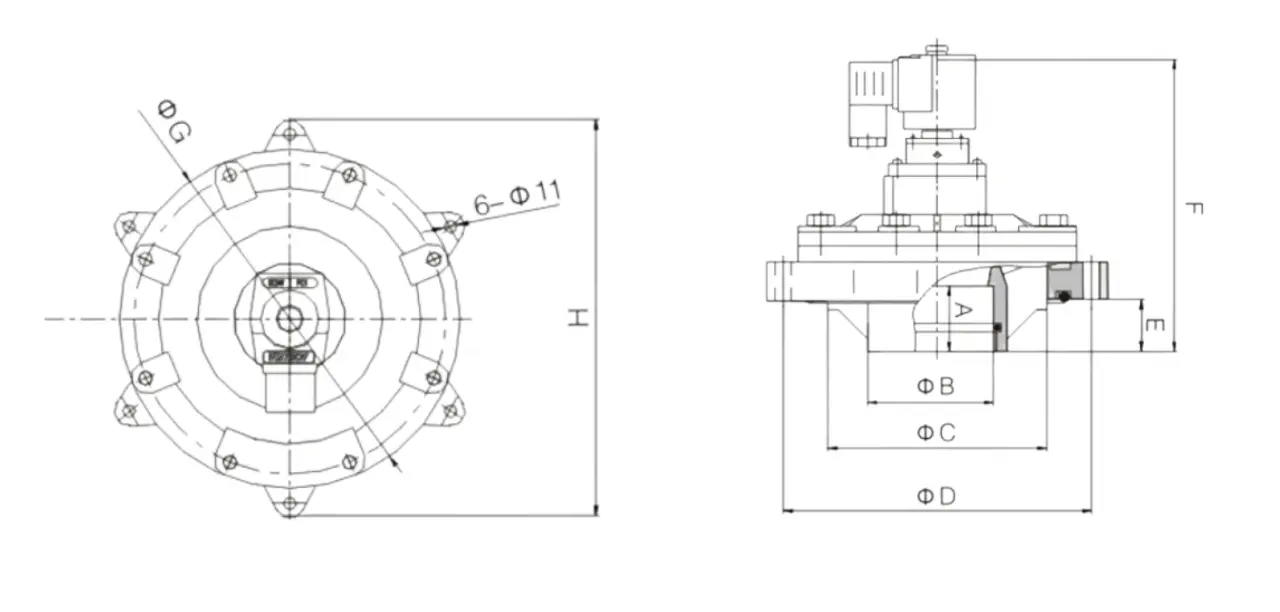

WPS-CA/EP102 · botiriladigan klapan — O'rnatish chizmasi

Overall length (valve)	🔒
Diaphragm cover flange OD	Ø227 [8.94]
Inner bolt/ring diameter	🔒
Diaphragm bore	🔒
Cover thickness / lip	7 [0.26]
Solenoid/pilot boss offset	27 [1.06]

+15 yana o'lchamlar

Overall length (valve)	217.3 [8.554]
Diaphragm cover flange OD	Ø239 [9.41]
Inner ring diameter	🔒
Diaphragm ring ø	Ø202.2 [7.961]
Diaphragm bore	🔒
Cover/top boss offset	🔒

Overall length (valve)	188 [7.4]
Mounting flange OD	Ø180 [7.09]
Ring ø	Ø130 [5.12]
Diaphragm/seat ø	🔒
Seat bore ø (tol)	🔒
Cover/top boss offset	🔒

Overall length (valve)	196 [7.72]
Mounting flange OD	Ø208 [8.19]
Ring ø	🔒
Diaphragm ø	🔒
Seat bore ø (tol)	🔒
Cover/top boss offset	7 [0.28]

Overall height (valve incl. solenoid)	200 [7.87]
Diaphragm cover flange OD	🔒
Ring ø	Ø174.6 [6.84]
Inner ring ø	Ø160 [6.3]
Seat/diaphragm bore ø	🔒
Cover/side boss offset	🔒

Overall length (valve)	140 [5.51]
Inlet flange/hub OD	Ø59 [2.32]
Port bore ø	🔒
Thread	G1"
Top boss offset	🔒
Mounting flange face to body	🔒

Overall length (valve)	184 [7.24]
Inlet flange/hub OD	Ø73 [2.87]
Port bore ø	🔒
Thread (inlet)	G1-1/2"
Top boss offset	🔒
Mounting flange face to body	🔒

Overall outer / mounting flange OD	Φ490 [Φ19.29]
Bolt-circle diameter (bcd)	🔒
Inner opening / port diameter	Φ435 [Φ17.13]
Diaphragm / spring seat diameter (bolt pattern *10)	🔒
Bolt holes	🔒
Flange thickness (top)	20 [0.79]

Overall outer / mounting flange OD	Φ600 [Φ23.62]
Bolt-circle diameter (bcd)	🔒
Inner opening / port diameter	Φ512 [Φ20.16]
Diaphragm / spring seat diameter (bolt pattern *10)	🔒
Bolt holes	🔒
Flange thickness (top)	20 [0.79]

Overall outer / mounting flange OD	Φ730 [Φ28.74]
Bolt-circle diameter (bcd)	🔒
Inner opening / port diameter	Φ616 [Φ24.25]
Diaphragm / spring seat diameter (bolt pattern *10)	🔒
Bolt holes	🔒
Flange thickness (top)	20 [0.79]

Overall outer / mounting flange OD	Φ842 [Φ33.15]
Bolt-circle diameter (bcd)	🔒
Inner opening / port diameter	Φ716 [Φ28.19]
Diaphragm / spring seat diameter (bolt pattern *10)	🔒
Bolt holes	🔒
Flange thickness (top)	20 [0.79]

Overall outer / mounting flange OD	Φ940 [Φ37.01]
Bolt-circle diameter (bcd)	🔒
Inner opening / port diameter	Φ806 [Φ31.73]
Diaphragm / spring seat diameter (bolt pattern *10)	🔒
Bolt holes	🔒
Flange thickness (top)	20 [0.79]

Botiriladigan impuls klapani

WPS-CA turkumi bo'yicha ish sharoitlari.

Watson® WPS-CA botiriladigan impuls klapani modellari.

Watson® botiriladigan impuls klapanining afzalliklari.

Ushbu mahsulot turkumi mustaqil tashkilot tomonidan sertifikatlangan.

Portlashdan himoya muvofiqlik sertifikati (NEPSI) — WPS-F seriyali portlashdan himoyalangan impuls klapanlari

UL muvofiqlik sertifikati — Tan olingan komponent, elektr bilan boshqariladigan klapanlar uchun g'altak yig'ini

Ushbu mahsulot uchun o'rnatish o'lchamlari.

WPS-CA/EP102 · botiriladigan klapan — O'rnatish chizmasi

WPS-CA/EP102.B · botiriladigan klapan — O'rnatish chizmasi

WPS-CA/EP102.B · botiriladigan klapan — O'rnatish chizmasi

WPS-CA/EP115 · botiriladigan klapan — O'rnatish chizmasi

WPS-CA/EP50 · botiriladigan klapan — O'rnatish chizmasi

WPS-CA/EP62 · botiriladigan klapan — O'rnatish chizmasi

WPS-CA/EP76 · botiriladigan klapan — O'rnatish chizmasi

WPS-CA/EP76 · botiriladigan klapan — O'rnatish chizmasi

WPS-CA/EG25 · botiriladigan klapan — O'rnatish chizmasi

WPS-CA/EG40 · botiriladigan klapan — O'rnatish chizmasi

WPS-CA/EP200 · 8 dyuym · o'ta past bosimli katta klapan — O'rnatish chizmasi

WPS-CA/EP250 · 10 dyuym · o'ta past bosimli katta klapan — O'rnatish chizmasi

WPS-CA/EP300 · 12 dyuym · o'ta past bosimli katta klapan — O'rnatish chizmasi

WPS-CA/EP350 · 14 dyuym · o'ta past bosimli katta klapan — O'rnatish chizmasi

WPS-CA/EP400 · 16 dyuym · o'ta past bosimli katta klapan — O'rnatish chizmasi
