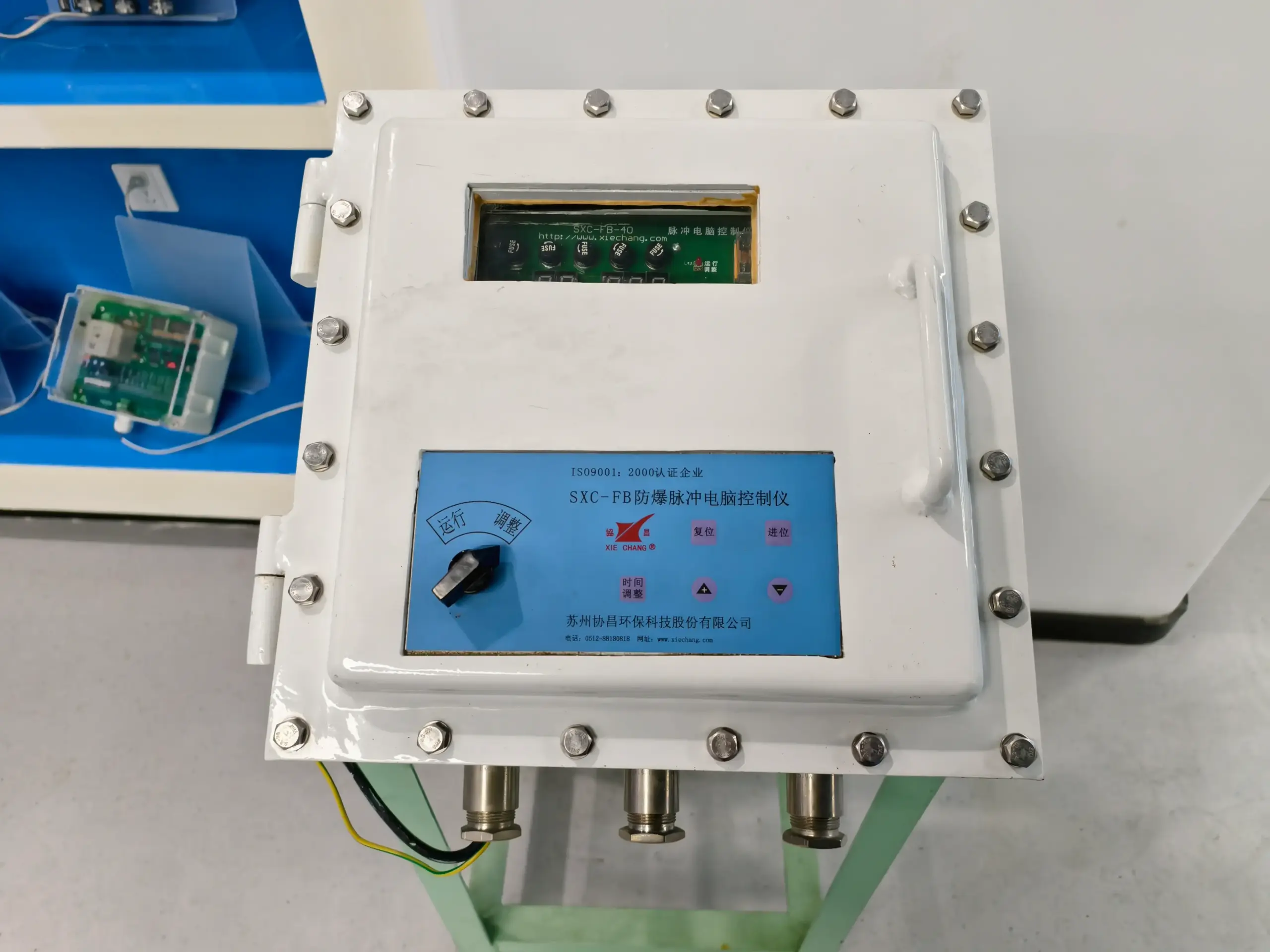

SXC-FB Seriyasi — Portlashdan Himoyalangan Ketma-ket Taymer
SXC-FB Seriyasi Portlashdan Himoyalangan Impuls Kontrolleri
Yonuvchi chang va portlovchi gaz sharoitlarida impuls tozalash uchun IP65 portlashdan himoyalangan ketma-ket kontroller, 28 tagacha chiqish, o'rnatilgan differensial bosim sezgichi va MODBUS ulanishi bilan.
Texnik parametrlar
Asosiy ish xususiyatlari.
BrendXiechang®
ModelSXC-FB
Korpus MaterialiQuyma alyuminiy
O'lchamlarW230 × H310 × D120 mm
Himoya darajasiIP65
Quvvat Ta'minotiAC130–230V, 50Hz
Chiqish KuchlanishiAC185–220V / DC24V
Maksimal Impuls Chiqishi28DO (NO), DC24V / 1.5A
Impuls Kengligi10–1000 ms
Impuls Intervali1–300 s
Bosim Diapazoni0–4 kPa
Ish harorati−10°C to +50°C
Quvvat Iste'moli230VA
Mahsulot standartlari
Xavfsiz va ulangan qopli chang ushlagich tozalash boshqaruvi uchun ishlab chiqilgan.
Portlashdan HimoyaYonuvchi chang va portlovchi gaz sharoitlari uchun ishlab chiqilgan
Bosim NazoratiIkkita bosim porti bilan o'rnatilgan 1 kanalli differensial bosim sezgichi
ZaxiralashDinamik zaxiralash konfiguratsiyalari tizimning uzluksiz ishonchliligini ta'minlaydi
AloqaMODBUS RTU va MODBUS TCP ni qo'llab-quvvatlovchi ikkita aloqa porti
Tozalash Mantig'iKetma-ket impuls klapani boshqaruvi uchun sozlanuvchi impuls kengligi va intervali
Mahsulot videolari
Tegishli namoyish va tanlov videolari.
Sertifikatlar
Ushbu mahsulot turkumi mustaqil tashkilot tomonidan sertifikatlangan.
Mahsulot sertifikati
SXC-FB 220VAC 300mA
CCC sertifikati — SXC-FB portlashdan himoyalangan impuls kontrolleri
| Sertifikat raqami | 2023322304005409 |
|---|---|
| Bergan tashkilot | Shanghai Inspection and Testing Institute of Instruments and Automation Systems Co., Ltd. (SITIIAS) |
| Berilgan sana | 2024-07-16 |
| Amal qilish muddati | 2028-07-30 |
| Standartlar | GB/T 3836.1-2021, GB/T 3836.2-2021, GB/T 3836.31-2021, CNCA-C23-01:2024 |
Mahsulot sertifikati
SXC-FB 220VAC 300mA

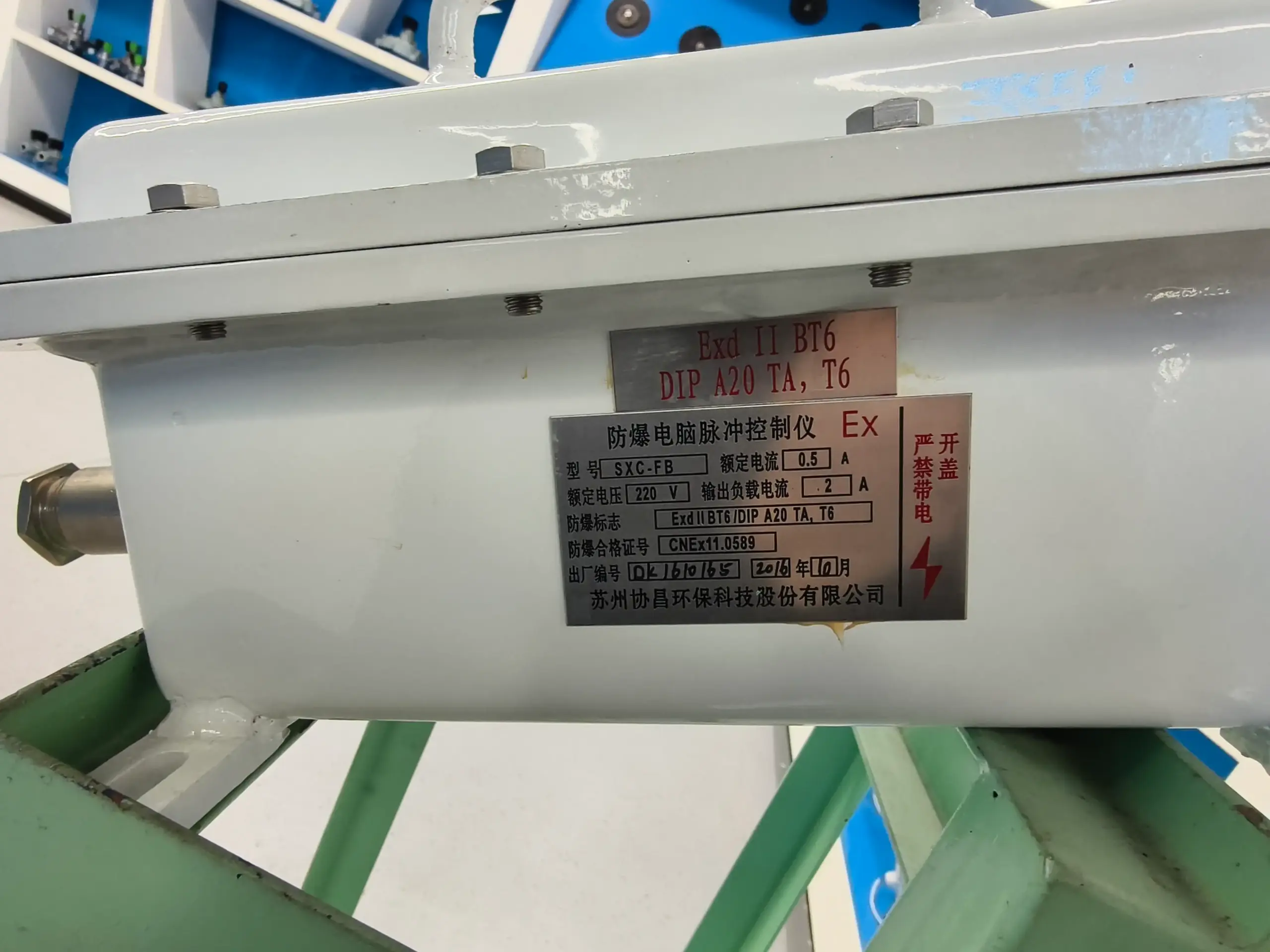

Ex sertifikati GYB25.1977X — SXC-FB portlashdan himoyalangan impuls kontrolleri
| Sertifikat raqami | GYB25.1977X |
|---|---|
| Bergan tashkilot | Shanghai Inspection and Testing Institute of Instruments and Automation Systems Co., Ltd. (NEPSI - National Supervision and Inspection Center for Explosion Protection and Safety of Instrumentation) |
| Berilgan sana | 2025-06-12 |
| Amal qilish muddati | 2030-06-11 |
| Standartlar | GB/T 3836.1-2021, GB/T 3836.2-2021, GB/T 3836.31-2021, JB/T 5915-2013 |
