Watson® WPS-CA/TG rezbali seriyasi

Rezbali impuls klapani

Watson® rezbali impuls klapanlari qopli chang ushlagichlarni impulsli tozalash tizimlari uchun standart G-rezbali ulanishlarga ega mustahkam to'g'ri burchakli korpusdan foydalanadi. WPS-CA/TG qatori barqaror puflash naychasi ulanishi, ishonchli impuls yetkazib berish va yuqori tsiklli sanoat changini yig'ish xizmati uchun DN20 dan DN76 gacha modellarni qamrab oladi.

TG model qatorini ko'rishSo'rov yuborish

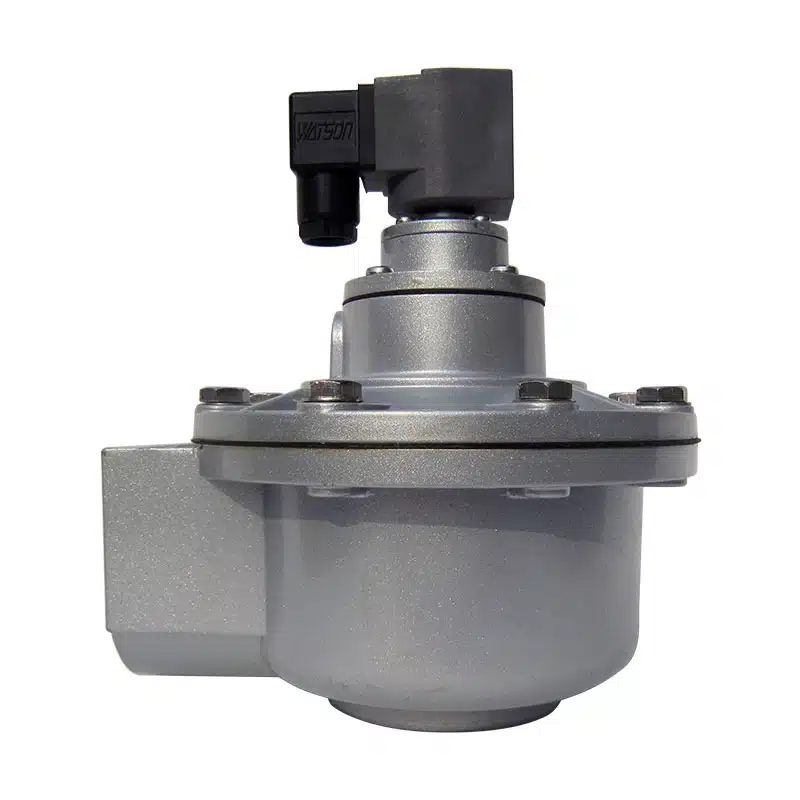

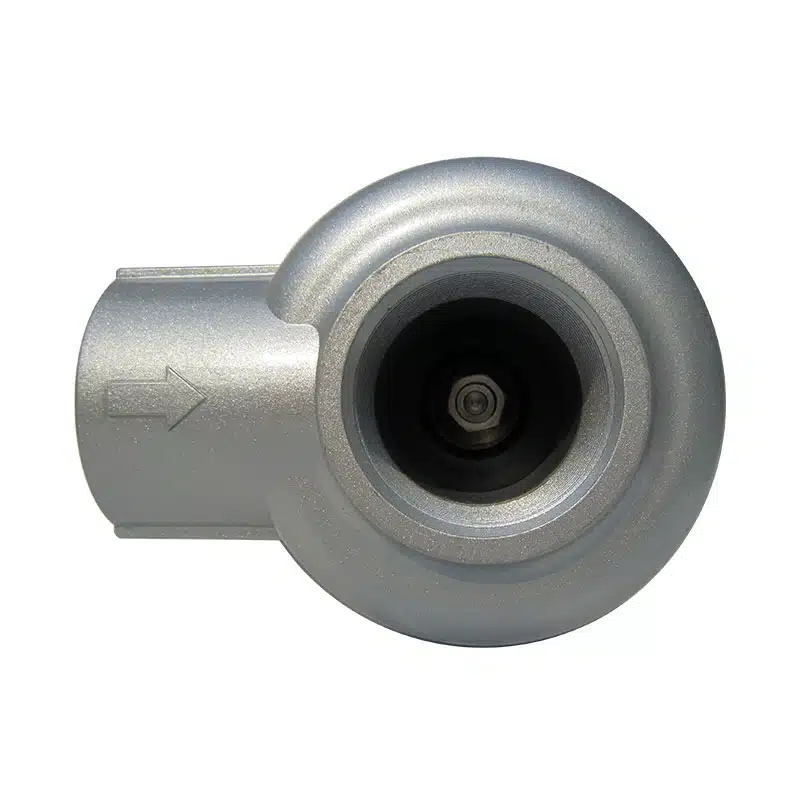

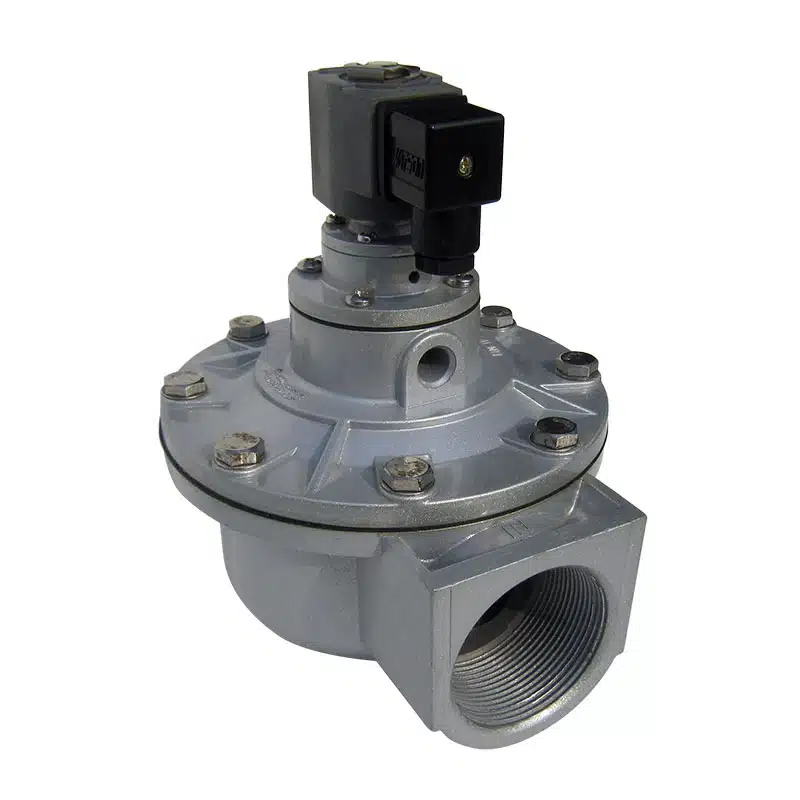

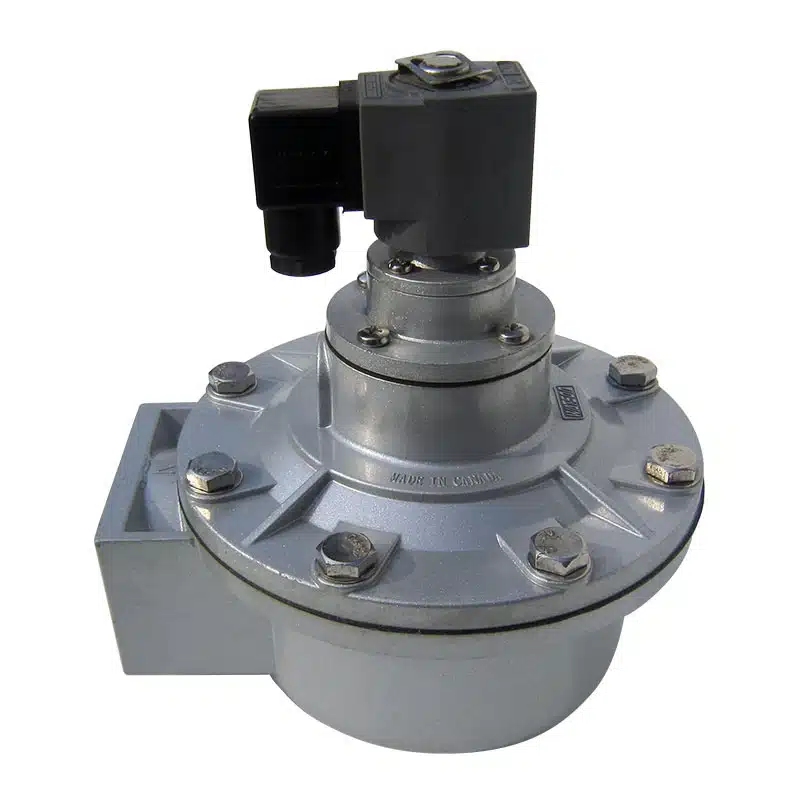

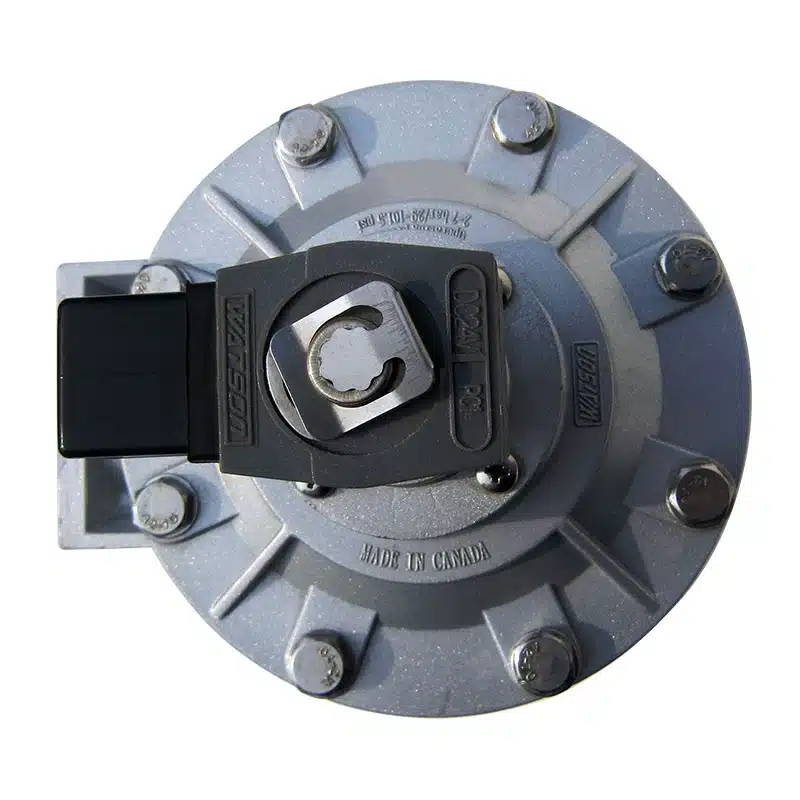

Watson® rezbali impuls klapani asosiy ko'rinishi

Universal ish xususiyatlari

WPS-CA turkumi bo'yicha ish sharoitlari.

Working Pressure0.4-0.6 MPa (4-6 bar)
Working MediumClean air
Power SupplyDC24V, AC220V/50Hz to AC240V/60Hz
Protection ClassIP65
Working EnvironmentNormal: -20°C to 80°C; high-temp: 55°C to 180°C
Relative Humidity≤85%

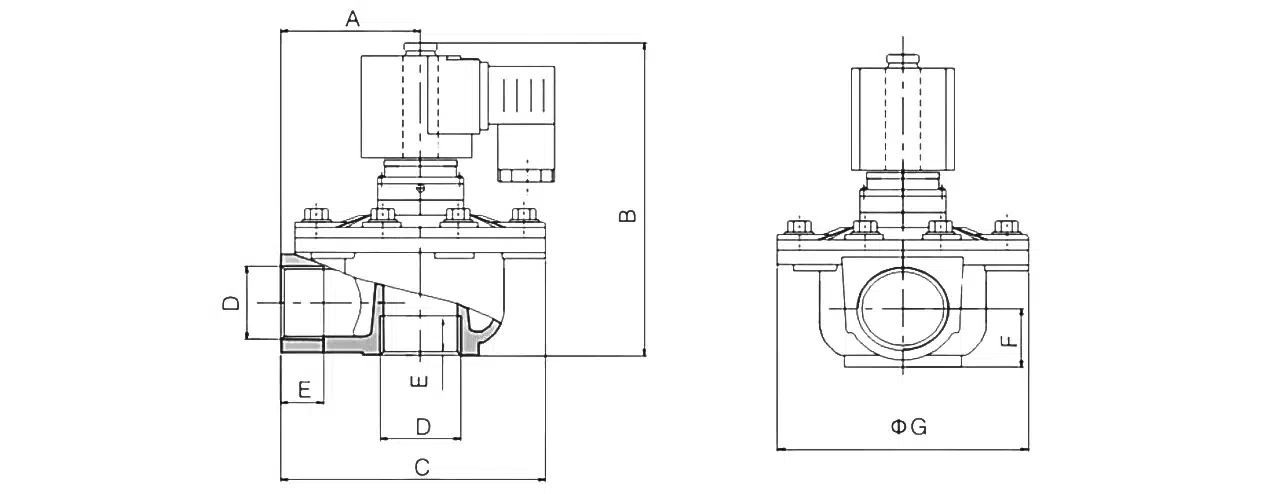

To'liq model turkumi

Watson® WPS-CA/TG rezbali impuls klapani modellari.

Ish bosimi 0.4-0.6 MPa · toza havo · DC24V yoki AC220V/50Hz-AC240V/60Hz · IP65 · CE / CCC / RoHS sertifikatlangan

TuriModel raqamiO'lcham (dyuym)DN o'lchamiEx himoya darajasi
RezbaliWPS-CA/TG20G3/4"DN20Bitta diafragma
RezbaliWPS-CA/TG25G1"DN25Bitta diafragma
RezbaliWPS-CA/TG40G1 1/2"DN40Ikkita diafragma
RezbaliWPS-CA/TG50G2"DN50Ikkita diafragma
RezbaliWPS-CA/TG62G2 1/2"DN65Ikkita diafragma
RezbaliWPS-CA/TG76G3"DN76Ikkita diafragma

Mahsulot standartlari

Watson® rezbali impuls klapanining afzalliklari.

SertifikatlarCE, CCC, RoHS
Himoya darajasi (IP)IP65
UlanishStandart G-rezbali ulanish rezbali puflash naychalariga qattiq, keng moslashuvchan o'rnatishni ta'minlaydi.
Klapan korpusiTo'g'ri burchakli mustahkamlangan konstruksiya yuqori bosimli impulsli tozalash xizmatiga mos keladi.
Yuqori haroratli xizmatYuqori haroratli diafragma variantlari elektr stansiyasi, eritish zavodi va yoqib yo'q qilish qopli chang ushlagich qo'llanmalarini qo'llab-quvvatlaydi.

Sertifikatlar

Ushbu mahsulot turkumi mustaqil tashkilot tomonidan sertifikatlangan.

Barcha sertifikatlarni ko'rish →
Portlashdan himoya muvofiqlik sertifikati (NEPSI) — WPS-F seriyali portlashdan himoyalangan impuls klapanlari🔍 Kattalashtirish uchun bosing

Mahsulot sertifikati

WPS-F series (WPS-F-CA/TG20–TG76, TD20–TD40, EG25–EG40, EP50–EP115, incl. -E/-F/-M variants)

Portlashdan himoya muvofiqlik sertifikati (NEPSI) — WPS-F seriyali portlashdan himoyalangan impuls klapanlari

Sertifikat raqamiGYB25.2393X
Bergan tashkilotShanghai Instrument & Automation System Inspection and Testing Institute Co., Ltd. (NEPSI — National Supervision and Inspection Center for Explosion Protection and Safety of Instrumentation)
Berilgan sana2025-07-30
Amal qilish muddati2030-07-29
StandartlarGB/T 3836.1-2021, GB/T 3836.9-2021, Q/320500 HSXC 004-2022
Asl PDF hujjat kerakmi?
UL muvofiqlik sertifikati — Tan olingan komponent, elektr bilan boshqariladigan klapanlar uchun g'altak yig'ini🔍 Kattalashtirish uchun bosing

Mahsulot sertifikati

WPS-TZ-XQ (suffix A, B, C, D or E)

UL muvofiqlik sertifikati — Tan olingan komponent, elektr bilan boshqariladigan klapanlar uchun g'altak yig'ini

Sertifikat raqami20150423-MH49402 (Report Reference MH49402-20130423)
Bergan tashkilotUL LLC
Berilgan sana2015-04-23
StandartlarUL 429, CAN/CSA C22.2 No. 139-10
Asl PDF hujjat kerakmi?

Texnik chizmalar

Ushbu mahsulot uchun o'rnatish o'lchamlari.

WPS-CA/TD20 · tashqi rezbali / alangadan himoyalangan klapan — O'rnatish chizmasiO'lchamlar so'rov bo'yicha taqdim etiladi

WPS-CA/TD20

WPS-CA/TD20 · tashqi rezbali / alangadan himoyalangan klapan — O'rnatish chizmasi

Overall height162 [6.38]
Inlet pipe-port outer diameter (top of detail)phi27 [1.06]
Inlet pipe-port inner/seat diameter🔒
Inlet pipe-port chamfer3*30 deg
Inlet pipe-port depth 1🔒
Inlet pipe-port wall/step🔒

+9 yana o'lchamlar

To'liq chizma va o'lchamlarni oling

Original chizma so'rov bo'yicha yuboriladi · bir ish kuni ichida javob beramiz

WPS-CA/TD25 · tashqi rezbali / alangadan himoyalangan klapan — O'rnatish chizmasiO'lchamlar so'rov bo'yicha taqdim etiladi

WPS-CA/TD25

WPS-CA/TD25 · tashqi rezbali / alangadan himoyalangan klapan — O'rnatish chizmasi

Overall height🔒
Inlet pipe-port outer diameter (top of detail)phi34 [1.34]
Inlet pipe-port inner/seat diameter🔒
Inlet pipe-port chamfer🔒
Inlet pipe-port depth 130 [1.18]
Inlet pipe-port wall/step2 [0.08]

+9 yana o'lchamlar

To'liq chizma va o'lchamlarni oling

Original chizma so'rov bo'yicha yuboriladi · bir ish kuni ichida javob beramiz

WPS-CA/TD40 · tashqi rezbali / alangadan himoyalangan klapan — O'rnatish chizmasiO'lchamlar so'rov bo'yicha taqdim etiladi

WPS-CA/TD40

WPS-CA/TD40 · tashqi rezbali / alangadan himoyalangan klapan — O'rnatish chizmasi

Overall height🔒
Inlet pipe-port outer diameter (top of detail)🔒
Inlet pipe-port inner/seat diameter🔒
Inlet pipe-port chamfer3*30 deg
Inlet pipe-port depth 130 [1.18]
Inlet pipe-port wall/step2 [0.08]

+9 yana o'lchamlar

To'liq chizma va o'lchamlarni oling

Original chizma so'rov bo'yicha yuboriladi · bir ish kuni ichida javob beramiz

WPS-F-CA/TG25 · tashqi rezbali / alangadan himoyalangan klapan — O'rnatish chizmasiO'lchamlar so'rov bo'yicha taqdim etiladi

WPS-F-CA/TG25

WPS-F-CA/TG25 · tashqi rezbali / alangadan himoyalangan klapan — O'rnatish chizmasi

Overall height136 [5.35]
Inlet port threadG1"
Outlet port thread🔒
Inlet neck length / in offset🔒
Body seat to flange dimension (top-left)🔒
Outlet neck length (right)27 [1.06]

+3 yana o'lchamlar

To'liq chizma va o'lchamlarni oling

Original chizma so'rov bo'yicha yuboriladi · bir ish kuni ichida javob beramiz

WPS-F-CA/TG40 · tashqi rezbali / alangadan himoyalangan klapan — O'rnatish chizmasiO'lchamlar so'rov bo'yicha taqdim etiladi

WPS-F-CA/TG40

WPS-F-CA/TG40 · tashqi rezbali / alangadan himoyalangan klapan — O'rnatish chizmasi

Overall height🔒
Inlet port thread🔒
Outlet port threadG1-1/2"
Inlet neck length / in offset34 [1.3]
Body seat to flange dimension (top-left)🔒
Outlet neck length (right)28 [1.1]

+3 yana o'lchamlar

To'liq chizma va o'lchamlarni oling

Original chizma so'rov bo'yicha yuboriladi · bir ish kuni ichida javob beramiz
